Standard Bullhorns
Multi-fixture brackets for mounting 2, 3, or 4 fixtures on a single pole. Slip over a 2 3/8” OD vertical pole tenon.

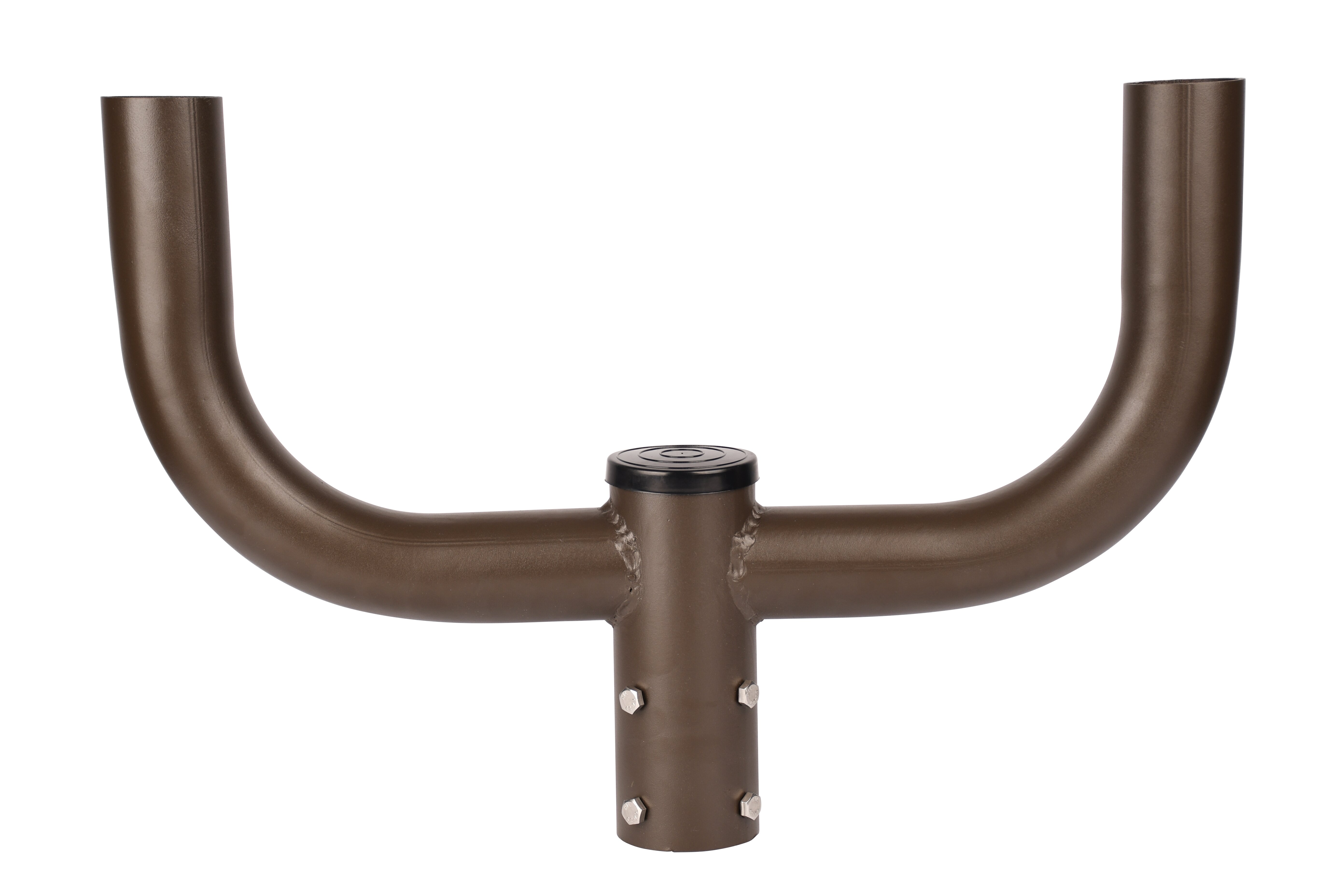

Standard Bullhorn
High-Grade Steel • Powder Coat Bronze • 2–4 Fixture Configurations
Standard bullhorn brackets for mounting multiple fixtures on a single pole. Available in 2-arm, 3-arm, and 4-arm configurations to accommodate a range of lighting layouts. Each bullhorn slips over a 2 3/8” OD vertical pole tenon and is compatible with 2 3/8” ID fixture slipfitters.
Key Features
- Slips over 2 3/8” OD vertical pole tenon
- Compatible with 2 3/8” ID fixture slipfitter
- High-grade steel tubing construction
- Powder coat bronze finish standard
- (4) Stainless steel 3/8” hex head mounting bolts provided
Available Configurations
Downloads
Specification Sheet (PDF)Dimensions
| Catalog # | A | B |
|---|---|---|
| BH2180 | 10.23” | 14” |
| BH3180 | 21.5” | 14” |
| BH3120 | 15” | 14” |
| BH490 | 10.23” | 14” |
Ordering Information
| Catalog # | Tenon | Slipfitter | Weight | Color |
|---|---|---|---|---|
| BH2180 | 2 3/8” OD | 2 3/8” ID | 12 lbs | Bronze |
| BH3180 | 2 3/8” OD | 2 3/8” ID | 18 lbs | Bronze |
| BH3120 | 2 3/8” OD | 2 3/8” ID | 16.67 lbs | Bronze |
| BH490 | 2 3/8” OD | 2 3/8” ID | 20 lbs | Bronze |
Spoke Tenon Adapters
Compact spoke-style multi-fixture adapters. Fixtures position radially from a central hub for a cleaner profile than standard bullhorns.

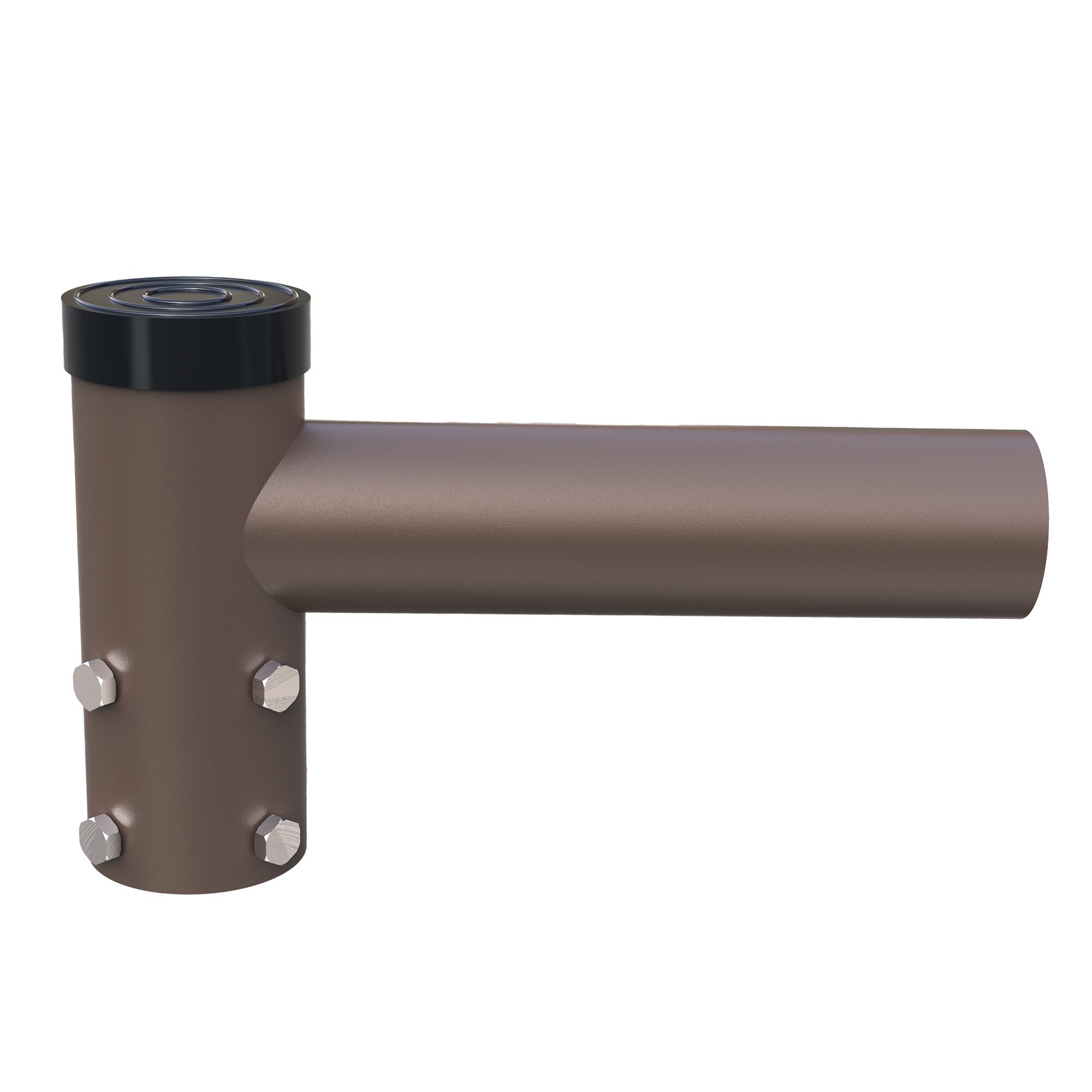

Spoke Tenon Adapter
High-Grade Steel • Powder Coat Bronze • 1–4 Fixture Configurations
Spoke-style tenon adapters for compact multi-fixture pole mounting. Unlike standard bullhorns, spoke adapters position fixtures radially from a central hub for a cleaner profile. Available in 1-arm through 4-arm configurations. Each adapter slips over a 2 3/8” OD vertical pole tenon.
Key Features
- Slips over 2 3/8” OD vertical pole tenon
- Compatible with 2 3/8” ID fixture slipfitter
- Radial spoke design for cleaner pole profile
- High-grade steel tubing, bronze powder coat finish
- (4) Stainless steel hex head mounting bolts provided
Available Configurations
Downloads
Specification Sheet (PDF)Dimensions
| Catalog # | A | B |
|---|---|---|
| SPBH190 | 10.23” | 7” |
| SPBH290 | 10.23” | 7” |
| SPBH490 | 12” | 7” |
| SPBH3120 | 10” | 7” |
| SPBH2180 | 10.23” | 7” |
Ordering Information
| Catalog # | Tenon | Slipfitter | Weight | Color |
|---|---|---|---|---|
| SPBH190 | 2 3/8” OD | 2 3/8” ID | 5 lbs | Bronze |
| SPBH290 | 2 3/8” OD | 2 3/8” ID | 8 lbs | Bronze |
| SPBH490 | 2 3/8” OD | 2 3/8” ID | 14 lbs | Bronze |
| SPBH3120 | 2 3/8” OD | 2 3/8” ID | 10 lbs | Bronze |
| SPBH2180 | 2 3/8” OD | 2 3/8” ID | 7 lbs | Bronze |
Pole Top Adapters
Convert square or round non-tapered poles to accept a 2 3/8” OD tenon for single-fixture or bullhorn mounting. Available in multiple pole top sizes.

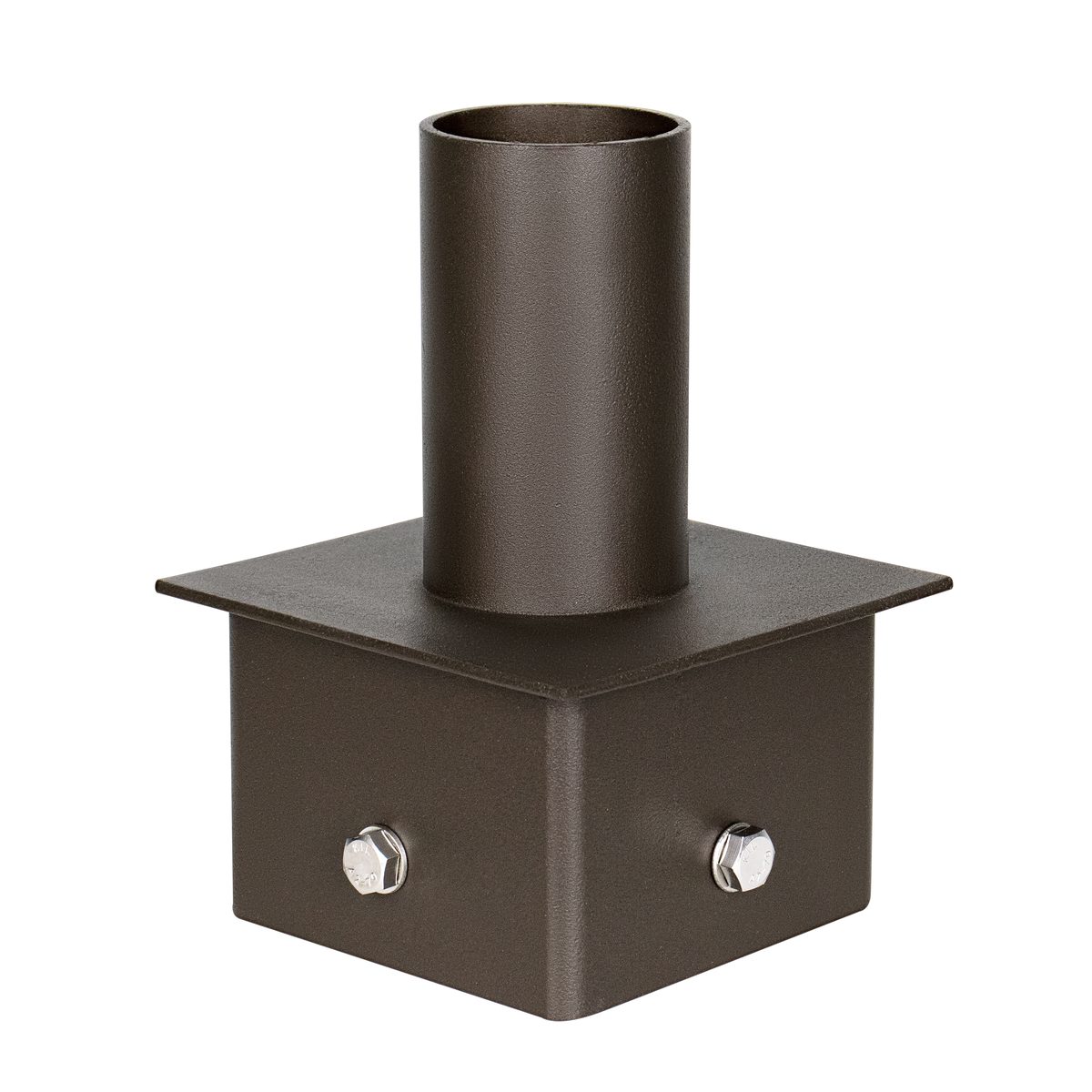

Square Pole Top Adapter
For Square Non-Tapered Poles • Bronze Powder Coat • Hardware Included
Pole top adapter designed for use with square non-tapered poles. Provides a 2 3/8” OD vertical tenon for mounting fixtures or bullhorn brackets. Available in 4” and 5” pole top sizes to match your pole dimensions.
- Designed for square non-tapered poles
- 2 3/8” OD adapter vertical tenon
- (4) Stainless steel 5/16” hex head bolts included
- Bronze powder coated finish
Dimensions
| Catalog # | A | B | C | D |
|---|---|---|---|---|
| STA4 | 2.38 OD | 4” | 3” | 3.625” |
| STA5 | 2.38 OD | 4” | 3” | 4.25” |
Ordering Information
| Catalog # | Pole Top | Tenon | Weight |
|---|---|---|---|
| STA4 | 4” | 2 3/8” OD | 3 lbs |
| STA5 | 5” | 2 3/8” OD | 5 lbs |
Downloads
Specification Sheet (PDF)

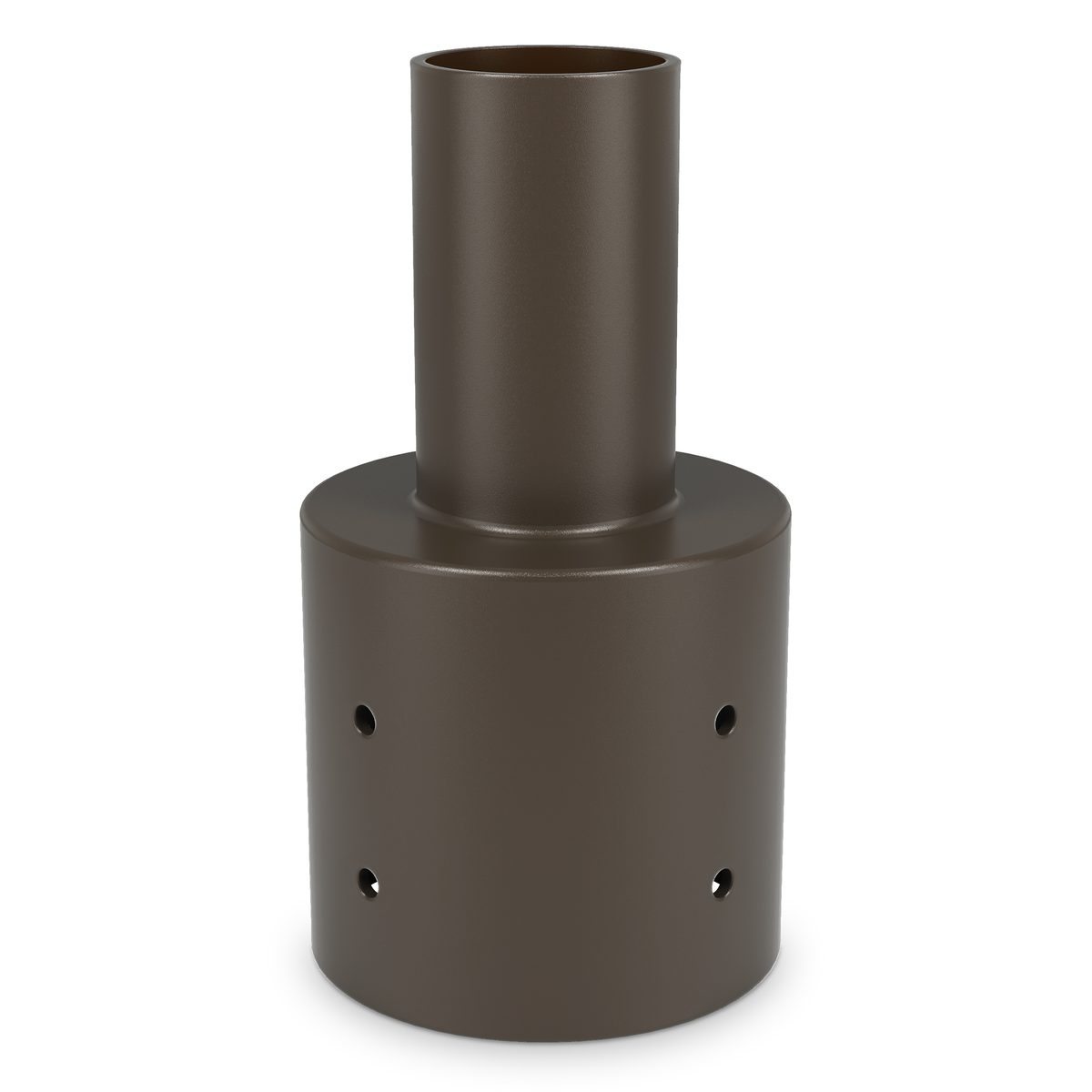

Round Pole Top Adapter
For Round Non-Tapered Poles • Bronze Powder Coat • Hardware Included
Pole top adapter designed for use with round non-tapered poles. Provides a 2 3/8” OD vertical tenon for mounting fixtures or bullhorn brackets. Available in 3”, 4”, and 5” pole top sizes.
- Designed for round non-tapered poles
- 2 3/8” OD adapter vertical tenon
- (4) Stainless steel 5/16” hex head bolts included
- Bronze powder coated finish
Dimensions
| Catalog # | A | B | C | D |
|---|---|---|---|---|
| RTA3 | 2.38 OD | 4” | 4.25” | 3.25” |
| RTA4 | 2.38 OD | 4” | 4.25” | 4.25” |
| RTA5 | 2.38 OD | 4” | 4.875” | 5.25” |
Ordering Information
| Catalog # | Pole Top | Tenon | Weight |
|---|---|---|---|
| RTA3 | 3” | 2 3/8” OD | 3 lbs |
| RTA4 | 4” | 2 3/8” OD | 4 lbs |
| RTA5 | 5” | 2 3/8” OD | 5 lbs |
Downloads
Specification Sheet (PDF)Wall Mount Adapters
Mount fixtures directly to walls or structures without a pole. Provides a 2 3/8” OD tenon with built-in wiring access. 90° and 180° configurations available.
Wall Mount Adapter
Bronze Powder Coat • Wiring Access • 90° and 180° Configurations
Wall mount adapters for mounting fixtures directly to walls or other structures without a pole. Provides a 2 3/8” OD tenon for attaching fixtures. Built-in wiring access simplifies electrical connections. Available in 90° (perpendicular) and 180° (straight-out) configurations.
- Mounts to wall or other structure
- 2 3/8” OD tenon for fixture mounting
- Built-in wiring access for easy electrical connections
- Bronze powder coated finish
Available Configurations
Dimensions
| Catalog # | A | B | C | D |
|---|---|---|---|---|
| WM90 | 2.38 OD | 6” | 4” | 9” |
| WM180 | 2.38 OD | 4” | 4” | 4” |
Ordering Information
| Catalog # | Weight | Finish |
|---|---|---|
| WM90 | 3 lbs | Bronze |
| WM180 | 2 lbs | Bronze |
Downloads
Specification Sheet (PDF)Need Poles Too?
View our commercial-grade steel poles — 20', 25', and 30' heights with all mounting hardware included.
Need Help Selecting the Right Accessory?
Our team can help you match the right bullhorns, adapters, and mounting brackets to your pole and fixture configuration. Contact us for pricing, lead times, or to discuss your project requirements.
